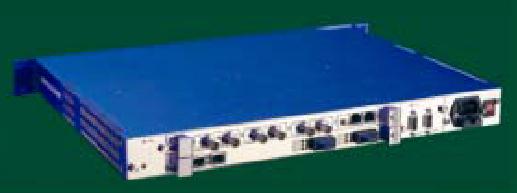

ATM Vision AV-1

SDH/SONET, PDH, ATM 망을 연결하여 E3, DS3 또는 DVB SPI, ASI등의 채널을 연결하는 네트워크 어뎁터
최대 4 x DVB ASI 또는 SDTI 채널지원
최대 16 x E1/T1 CES 채널지원
E3, DS3 또는 DVB SPI 채널지원


ATM Vision

is a multifunctional and fully scalable ATM Adapter enabling broadcasters and network providers to take advantage of all QoS aspects of ATM based Video and IP transmission. Ranging from DVB-T applications, Digital cable head end transmission, Primary distribution services up to high quality contribution services ATM Vision. The modular architecture, wide choice of network and service interfaces, and integration of additional communication services such as data transmission and telephony makes ATM Vision perfectly suitable for all challenges of a cost-effective transmission over PDH/SDH/ATM networks.

Key Features of ATM Vision

  • 16 uni-directional DVB ASI or SDTI channels
  • 16 Ethernet Bridges @ 100Mbit/s
  • 64 E1/T1 CES channels
  • 4 bi-directional E3/DS3/SPI channels
  • 10 and 10/100 Mbit Ethernet ports
  • UNI 3.1 and 4.0 Signalling
  • all common PDH/SDH/ATM Line Interfaces
  • Cascade port @ ATM level
  • AAL1/AAL5 and FEC supported
  • seamless interfacing to all common video codecs, multiplexers etc.
  • seamless interfacing to all common network switches
  • PVC/SVC and P2MP support
  • CLIP and LANE
  • IP Routing (OSPF, RIP; BGP)
  • Performance monitoring and statistics
  • 1U or 3U 19" rack mountable
  • AC/DC power supply
  • fully integrated into Maya NMS
