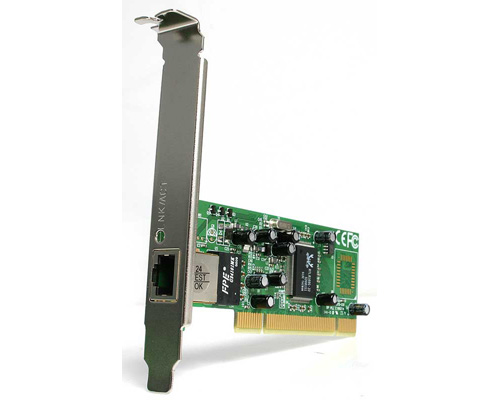

ST1000BT32

노트북용 10/100/1000 Mbps 32 bit PCI Gigabit Ethernet 카드
Full duplex 지원 최대 데이터 전송속도 2000 Mbits/sec
Windows 98SE/Me/NT/2000/XP/Vista, Netware Server 5.x, Netware ODI for DOS Linux, Unix 호환

Overview
Are you looking for an easy way to bring Gigabit to the desktop? This 1000 Mbits/sec. network adapter is the perfect compliment to your high-speed Ethernet infrastructure and is ideal for demanding applications like multimedia authoring, CAD/CAM, database management, video conferencing, and any other solution that demands high bandwidth.
  • Easy Plug and Play installation
  • Full duplex support allows for transfer rates up to 2000 Mbits/sec.
  • Also auto-negotiates 10 and 100 Mbits/sec. connections for additional flexibility.
This product is backed by StarTech.com's Lifetime warranty.





Features

•  Compatible with all versions of Windows®, Mac®, and Linux
•  Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards
•  Easy plug and play installation for quick setup
•  Full duplex design increases your network performance to 20/200/2000Mbits/sec
•  IEEE 802.1Q VLAN tagging for up to 64 VLANs
•  IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex
•  LED indicator shows network link/activity and 10/100/1000Mbits/sec selection
•  One RJ-45 connector supports 10/100/1000Mbits/sec network speeds and Auto-MDI/MDI-X
•  Supports 32-bit 33/66MHz PCI Local Bus Master for high-speed operation
•  Supports PCI 2.1 Wake ON LAN function

Technical Specifications

Warranty Lifetime warranty
Bus Type PCI / PCI-X (5 / 3.3V)
Connector Types 1 - RJ45 Female
Full Duplex Support Yes
Product Height 2.48 in [63 mm]
LED Indicators 1 - 10/100/1000 Mbits/sec Link/Activity
Product Length 5.67 in [144 mm]
Maximum Data Transfer Rate [1000000 Kbits/Sec]
Number of Ports 1
Operating Temperature 0 to 55
Carton Quantity 50
Industry Standards IEEE 802.3
Industry Standards IEEE 802.3ab
Industry Standards IEEE 802.11u
Industry Standards PCI 2.1
Industry Standards PCI 2.2
Shipping (Package) Weight 0.25 lb [0.11 kg]
Protocol CSMA/CD
IRQ Line & I/O Address Allocated by system
Support Drivers Windows 98SE/Me/NT/2000/XP/Vista, Netware Server 5.x, Netware ODI for DOS Linux and Unix
Chipset RealTek RTL8169S
