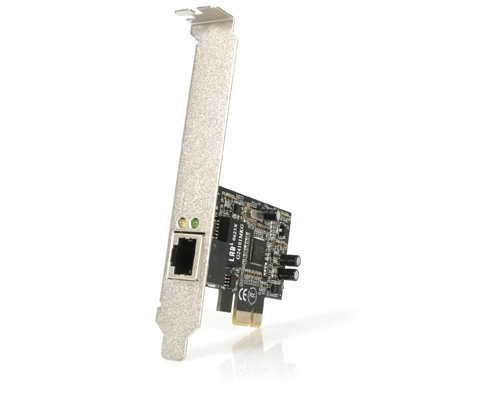

노트북용 PCI Express 10/100/1000Mbps Gigabit Ethernet 카드
최대 데이터 전송속도 1000 Mbits/sec
Bus 타입 : PCI Express Type II
Windows 2000/XP/XP x64, Vista 호환

Do you need to unleash the power your PCI Express-enabled workstation or server for demanding network applications? ST1000BTPEX is designed to take advantage of the speed of the PCI Express architecture for high-bandwidth needs like video conferencing, databases, VoIP, multimedia design, and CAD/CAM.
  • 1x PCI design works in any PCI Express slot
  • Full and half duplex support combined with auto-negotiation means this card blends into any Gigabit (1000 Mbits/sec.) or traditional 10/100 Mbits/sec. network environment
  • Plug and Play installation in Windows environments
This product is backed by's Lifetime warranty.



•  10/100/1000 MBPS automatic negotiation
•  1x PCI Express interface eliminates bottlenecks
•  Auto crossover cable detection
•  Full and half duplex supported, IEEE 802.3x

Technical Specifications

Warranty Lifetime warranty
Connector Types 1 - RJ45 Female
Full Duplex Support Yes
Product Height 0.79 in [20 mm]
Product Length 3.7 in [94 mm]
Carton Quantity 35
Shipping (Package) Weight 0.22 lb [0.1 kg]
Product Weight 1.94 oz [55 g]
Product Width 4.72 in [120 mm]
Chipset Agere System AGR1310
OS Support Windows 2000/XP/XP x64 and Vista
Maximum Data Transfer Rate 1000 Mbits/sec. (2000 Mbits/sec. in full duplex mode)
Standards Supported IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q
LED Indicators Link/Activity, 1000 Mbits/sec. connection
Included in the box PCIe network card (1), User Manual (1), Driver CD (1)
Bus Type PCI Express
