 CB1000BT
5개의 포트를 가지는 10BaseT Micro 허브
데이터 전송속도 10Mbps
IEEE 802.3 10Base 표준
4대의 허브와 daisy chaine 하여 사용가능
PCs, MACs, Sun, DEC 호환

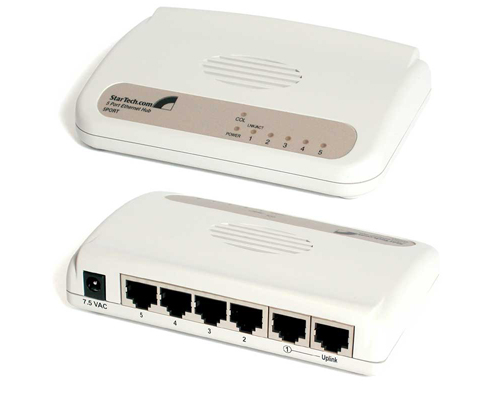

Running a small business? Need a small network? Want to add small workgroups to your existing network? The StarTech.com 5 Port 10BaseT micro hub is just what you need. The 5PORT is small in size, with plenty of potential for expandability. Features 5 UTP/STP ports with data transfer rates up to 10 Mbits/sec, and the ability to be daisy chained with up to 4 other hubs when your needs grow. Connected computers can be located up to 100 m away – perfect for any small office space. Backed by StarTech.com’s 2-year warranty and FREE lifetime tech support.
The StarTech.com Advantage
| • |
2-year warranty and FREE LIFETIME technical support |
| • |
Can be daisy chained with up to 4 other hubs for future expansion |
| • |
Connect 5 UTP/STP workstations for a small network workgroup |
| • |
Includes AC adapter and wall mount screws for quick setup |
Features
| • |
2-year warranty and FREE LIFETIME technical support |
| • |
Allows data recovery without signal distortion |
| • |
Automatic bad port partitioning isolates problem-causing workstations |
| • |
Compact design sits discreetly on desktop or mounts easily to wall (screws included) |
| • |
Fully conforms to IEEE 802.3 10BaseT repeater specifications |
| • |
Includes AC power adapter (120V) and wall-mounting screws |
| • |
LED indicators provide Link/Activity, Collision, Power status |
| • |
Uplink port allows for cascade expansion |
Technical Specifications
|
|
| Auto MDIX |
No |
| Color |
Beige |
| Connector Types |
5 - RJ45 Female |
| Product Height |
1.18 in [3 cm] |
| Product Length |
5.12 in [130 mm] |
| Number of Ports |
5 |
| Power Adapter Included |
Yes |
| Carton Quantity |
25 |
| Shipping (Package) Weight |
1.06 lb [0.48 kg] |
| Product Weight |
3.18 oz [90 g] |
| Product Width |
39.37 in [1000 mm] |
| Standards |
IEEE 802.3 10BaseT |
| Data Transfer Rate |
10Mbps |
| Protocol |
CSMA/CD |
| Maximum Distance |
100m |
| STP/UTP Ports |
(5) RJ-45 |
| Uplink Port |
(1) RJ-45 |
| LEDs |
(5) Link/Activity, Collision, Power |
| Supported Hardware |
PCs, MACs, Sun, DEC, any 10Base2/T compatible |
| Power Requirements |
7.5V AC, 500mA |
| Dimensions |
130x90x30mm (4.7x3.0x1.2 in.) |
| Weight |
1kg |
| Operating Environment |
0~45 deg C, 10~80% Humidity |
| Certifications |
FCC Class A, CE Mark | |
|
|
|
