DS16105
16°³ÀÇ Æ÷Æ®¸¦ °¡Áö´Â Desktop 10/100 Fast Ethernet ÃÖ´ë µ¥ÀÌÅÍ Àü¼Û¼Óµµ 100Mbps IEEE 802.3 10BaseT Ethernet, 802.3u 100BaseTX Fast Ethernet Ç¥ÁØ ÃÖ´ë 100¹ÌÅÍ ±îÁö Àü¼Û

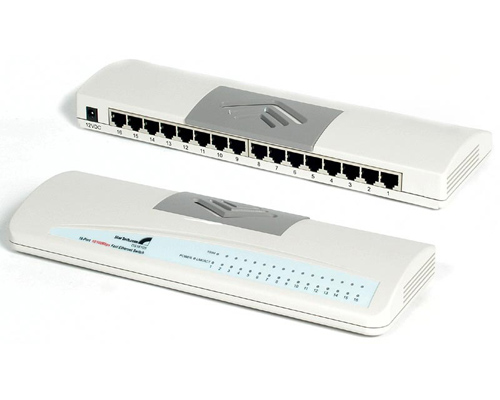

Whether you need to mix 10Mbps and 100Mbps connections, or want to extend your network beyond your current cabling length limitations, the StarTech.com full-duplex, 16-Port 10/100-Mbps Ethernet switch will be an invaluable addition to your expanding network. Up to 16 Fast Ethernet hubs or segments can be connected via RJ-45 ports and LED's for each port indicate network status at a glance. The auto crossover feature allows you to cascade another switch from any port without the need for a special crossover cable. This product replaces Switch DS16100, and Hubs 16PORT10BT, ED1516SX.
The StarTech.com Advantage
• |
Allows any mix of 10Mbps and 100Mbps computers or devices to be connected. |
• |
Extends maximum Ethernet cable distance by 100m (365 ft) |
• |
Relieves bandwidth bottlenecks, providing faster network response times. | Features
• |
2-year Warranty |
• |
All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function. |
• |
Auto MDIX (crossover) function provides automatic crossover when cascading switches or hubs - crossover cables or special uplink ports are no longer required |
• |
Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards |
• |
IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex |
• |
Simple and economical way to bridge 10BaseT and 100BaseTX networks and connect mixed speed devices |
• |
Sits on a desk/shelf or can be mounted on the wall. |
• |
Supports store-and-forward switching architecture | Technical Specifications
|
Auto MDIX |
Yes |
Buffer Size |
1 MB |
Color |
Beige |
Connector Types |
16 - RJ45 Female |
Filter/Forward Rate |
148800 |
Full Duplex Support |
Yes |
Product Height |
1.34 in [34 mm] |
Input Voltage |
12 DC |
Product Length |
11.42 in [290 mm] |
MAC Address |
8 KB |
Number of Ports |
16 |
Carton Quantity |
15 |
Industry Standards |
IEEE 802.3x |
Switching Architecture |
Store and Forward |
Shipping (Package) Weight |
2.5 lb [1.13 kg] |
Product Weight |
3.53 oz [100 g] |
Product Width |
25.98 in [660 mm] |
Standards |
IEEE 802.3 10BaseT and 802.3u 100BaseTX |
10/100Mbps Ports |
(16) RJ-45 Auto-MDIX |
Switching Architecture |
Store and Forward |
Filter/Forward Rate |
148,800 packets/sec. |
MAC Address |
8K |
Buffer Size |
1MB |
Nway Auto-negotiation |
on all ports |
Full-Duplex/Half-Duplex |
on all ports |
Dimensions |
11.5"L x 3.875"W x 1.25"H (290mm x 100mmx x 34mm) |
Weight |
1.45 lbs (0.66 kg) unit without power adapter | |
|
