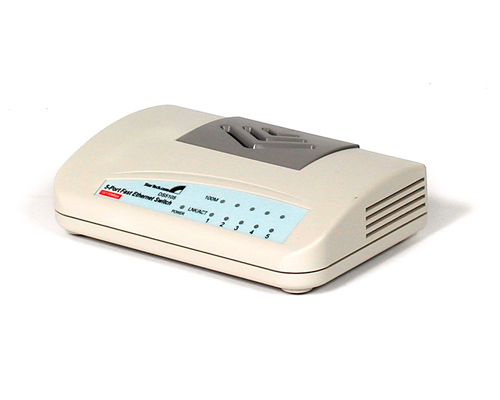

DS5105

5개의 포트를 가지는 Desktop 10/100 Ethernet Switch
최대 데이터 전송속도 100Mbps
IEEE 802.3 10 BaseT Ethernet, 802.3u 100BaseTX Fast Ethernet 표준
duplex 연결로 최대 200 Mbps 까지 가능
최대 100미터 까지 전송

Overview
Include this Fast Ethernet Switch in your networking solution if you need to extend your connection distance, segment network traffic, or bridge both 10BaseT and 100BaseTX together. One set of status leds for each of the 5 half/full duplex RJ45 ports, indicate network connections, activity, collisions, and full duplex mode at a glance. This product replaces Switch DS5100, DS5102 and Hub DS5102E.

The StarTech.com Advantage
•  Allows a network to be mixed 10 and 100Mbps for optimal price/performance ratio.
•  Extends cabling distances plus eliminates the 100BaseT repeater count limitation.
•  Ideal for relieving bandwidth bottlenecks and providing faster response times.


Features

•  All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function.
•  Auto MDIX (crossover) function provides automatic crossover when cascading switches or hubs - crossover cables or special uplink ports are no longer required
•  Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards
•  IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex.
•  Simple and economical way to bridge 10BaseT network and 100BaseTX network.
•  Store-and-forward switching architecture
•  Supports full duplex connections of up to 200Mbps
•  Wall Mountable


Technical Specifications

Warranty 2 Year warranty
Auto MDIX Yes
Color Beige
Connector Types 5 - RJ45 Female
Full Duplex Support Yes
Product Height 1.18 in [30 mm]
Input Current 0.5
Input Voltage 12 DC
Product Length 5 in [127 mm]
Number of Ports 5
Power Adapter Included Yes
Power Adapter - DC Voltage DC 12
Carton Quantity 25
Industry Standards IEEE 802.3x
Switching Architecture Store and Forward
Shipping (Package) Weight 1.15 lb [0.52 kg]
Product Weight 6.35 oz [180 g]
Product Width 3.27 in [83 mm]
Dimension 127 x 83 x 30 mm (5.0 x 3.27 x 1.18 inches).
Weight 180g (0.40lbs).
Port Led's LNK/ACT(Link/Activity) Yellow--100Mbps, Green--10Mbps, COL/FDX(Collision/Full Duplex)
Power 12V AC/DC, 0.5A
Note: This product will work with an AC or DC power adapter
Technical Specifications

Warranty 2 Year warranty
Auto MDIX Yes
Color Beige
Connector Types 5 - RJ45 Female
Full Duplex Support Yes
Product Height 1.18 in [30 mm]
Input Current 0.5
Input Voltage 12 DC
Product Length 5 in [127 mm]
Number of Ports 5
Power Adapter Included Yes
Power Adapter - DC Voltage DC 12
Carton Quantity 25
Industry Standards IEEE 802.3x
Switching Architecture Store and Forward
Shipping (Package) Weight 1.15 lb [0.52 kg]
Product Weight 6.35 oz [180 g]
Product Width 3.27 in [83 mm]
Dimension 127 x 83 x 30 mm (5.0 x 3.27 x 1.18 inches).
Weight 180g (0.40lbs).
Port Led's LNK/ACT(Link/Activity) Yellow--100Mbps, Green--10Mbps, COL/FDX(Collision/Full Duplex)
Power 12V AC/DC, 0.5A
Note: This product will work with an AC or DC power adapter
