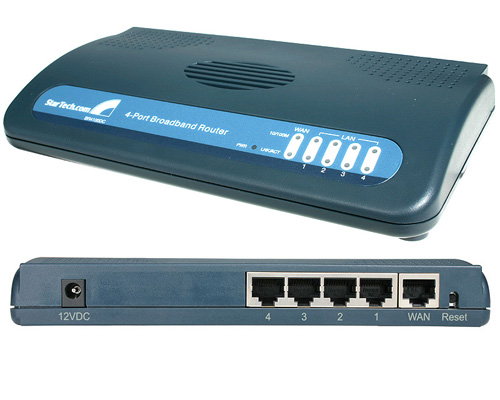

BR4100DC

4개의 포트를 가지는 10/100 Cable/DSL 광대역 라우터
4개의 포트로 최대 253대의 PC와 연결
최대 데이터 전송속도 100Mbps
지원 프로토콜 : TCP/IP, UDP, ICMP, PPPoE, PPTP, NAT/PAT, DHCP, RIP1/2, PAP/CHAP, MS-CHAP
연결 : 1 x WAN, 4 x LAN
PC, Mac호환

Overview
Set up a high-speed network with only one Internet connection! Save the cost of extra connections, modems and switches! The BR4100DC DSL/Cable Router connects to your broadband modem or Ethernet backbone, allowing you to connect up to 253 users via four 10/100 Mbits/sec ports. A web based user interface and Quick Setup Wizard walks you through installation and configuration and makes ongoing remote management simple and straightforward. Plus, to protect your network, the router comes with a built-in, configurable firewall that blocks hacker intrusion. And for extra security, the router uses NAT (Network Address Translation) to keep your private IP addresses hidden from unauthorized users. Advanced features like Virtual Server, Remote Access, DMZ, Access Control, and Address Mapping let you configure the router to meet the exact needs of your network solution. Backed by StarTech.com’s 2-year warranty and FREE lifetime tech support.



The StarTech.com Advantage
•  2-year warranty and FREE LIFETIME tech support
•  Built-in 4 port 10/100 Mbits/sec switch provides fast connection with nothing extra to buy
•  Controlled access and advanced firewall protection for maximum security
•  Share one Internet connection between up to 253 PC or Mac® systems
•  Web based user interface and setup wizard simplifies installation, configuration and remote administration


Features

•  2-year warranty and FREE LIFETIME tech support
•  Advanced functions include DMZ, and Access Control
•  Allows monitoring of Security Log, DHCP PC Client Log, Internet Connection, System Information and Device Status
•  Compact wall-mountable design saves desktop space
•  Intuitive Quick Install Wizard for easy setup and configuration
•  LED indicators continuously show operating status
•  NAT firewall blocks unauthorized users from accessing your private IP addresses
•  Remote management function allows network configuration and management from anywhere, over the Internet
•  Supports IP functions including PPTP, PPPoE, DHCP and NAT
•  Supports VPN – PPTP/L2TP/IPSec pass-through
•  Virtual server capability enables incoming access to specified FTP, e-mail and other servers


Technical Specifications

Warranty 2 Year warranty
Color Blue
Connector Types 5 - RJ45 Female
Enclosure Type Plastic
Full Duplex Support Yes
Product Height 1.18 in [30 mm]
Input Voltage 12 DC
LED Indicators 1 - Power
LED Indicators 1 - WAN Link and Activity
LED Indicators 1 - WAN 10 / 100 Mbit connection status
LED Indicators 1 - LAN Link and Activity
LED Indicators 1 - LAN 10 10 / 100 Mbit connection status
Product Length 7.36 in [187 mm]
Maximum Number of Computers 253
Maximum Data Transfer Rate [100 Mbits/Sec]
Number of Ports 4
Power Adapter Included Yes
Power Adapter - Amperage 0.5A
Power Adapter - DC Voltage 12V DC
Supported Protocols TCP/IP
Supported Protocols UDP
Supported Protocols ICMP
Supported Protocols PPPoE
Supported Protocols PPTP
Supported Protocols NAT/PAT
Supported Protocols DHCP
Supported Protocols RIP1/2
Supported Protocols PAP/CHAP
Supported Protocols MS-CHAP
Carton Quantity 15
Remote Management Ability Yes
Security Features Virtual DMZ
Security Features MAC Address Filtering
Security Features NAT Firewall
Industry Standards IEEE802.3
Industry Standards IEEE802.3u
Shipping (Package) Weight 1.81 lb [0.82 kg]
Product Width 3.94 in [100 mm]
Compatibility PC or MAC with RJ-45 Ethernet Connection
Total LAN Switch Ports 4
Total Users Supported 253
LAN Port 4 x 10/100 Mbits/sec RJ45 Base-T Port
Firewall Throughput 20 Mbits/sec
WAN 10 Mbits/sec
Router Dimensions
Inches 1.1 x 7.3 x 3.9
Millimeters 30 x 187 x 100
LED Indicators
Power Shows router's power supply status
WAN LNK/ACT Internet network connection status and activity status
WAN 10/100M Internet network connection status @ 100 Mbits/sec
LAN LNK/ACT Connection status and activity status
LAN 10/100M Connection status @ 100 Mbits/sec
Power AC Adapter 12V
Enclosure Color Blue
Enclosure Construction Plastic
Standards IEEE802.3 & IEEE802.3u
EMI Certifications FCC class B, CE Mark & C-Tick
