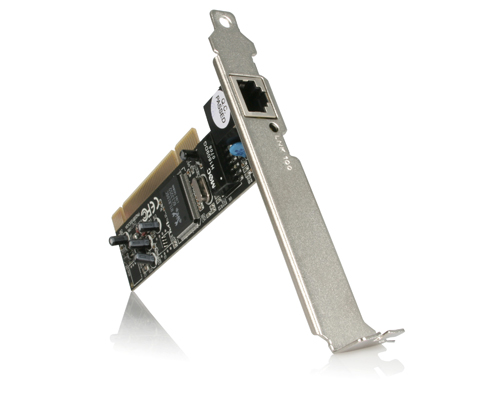

ST100S

10/100 PCI Ethernet 카드
최대 데이터 전송속도 200Mbps
Windows, Linux, Mac OS, Novell 호환

Overview
When you need a reliable, cost-effective Ethernet network connection, choose the ST100S. With full duplex support for data transfer rates up to 200 Mbits/sec., this card is supported by a wide variety of operating systems and integrates seamlessly into your network environment.
  • Easy Plug and Play installation and support for all popular OSes: Windows, Linux, Mac OS, and Novell
  • Full and half duplex support, plus auto-negotiation of 10 and 100 Mbits/sec. connections provides easy connectivity in any Ethernet environment
This product is backed by StarTech.com's Lifetime warranty.





Features

•  Auto-negotiation senses speed and duplex capabilities of connected devices
•  Auto-setups IRQ and I/O address.
•  Built-in FIFO buffers to eliminate external memory.
•  Complies with industry standards: IEEE 802.3 CSMA/CD, 100BaseTX and 10BaseT standard.
•  One STP connector for 100Mbps or 10Mbps network speed.
•  Provides diagnostic software and two LEDs to indicate network link/activity and 10/100Mbps selection.
•  Supports 32-bit PCI Bus Master for high performance and low processor utilization.
•  Supports early interrupt on transmit to increase performance.
•  Supports enhanced smart remote Boot ROM (optional) (BOOTPROM100S)
•  Supports ODI driver for NetWare 3.x/4.x, NDIS driver for LAN Manager, Windows 95, Windows 98, Windows NT, Packet Driver for TCP/IP software, and MAC OS X 10.3.


Technical Specifications

Warranty Lifetime warranty
Bus Type PCI (5 Volt)
Connector Types 1 - RJ45 Female
Full Duplex Support Yes
LED Indicators 1 - 10/100Mbps selection
LED Indicators 1 - Network link/activity
Maximum Data Transfer Rate [200 Mbits/Sec]
Number of Ports 1
Operating Temperature 0 ~ 55
Carton Quantity 40
Shipping (Package) Weight 0.33 lb [0.15 kg]
Connectors (1) RJ-45
Standards IEEE 802.3/802.3u
Bus Type PCI
IRQ Assigned by system
I/O Address Assigned by system
Drivers ODI driver for NetWare 3.x/4.x, NDIS driver for LAN Manager, Windows 95/98NT/2000/XP/Vista; Packet Driver for TCP/IP software, and MAC OS X 10.3
Temperature 0 to 55 degrees C
Humidity 10 to 90% non-condensing
Dimensions 120 x 32 mm
Weight 56 g
Chipset RealTek RTL8139D
