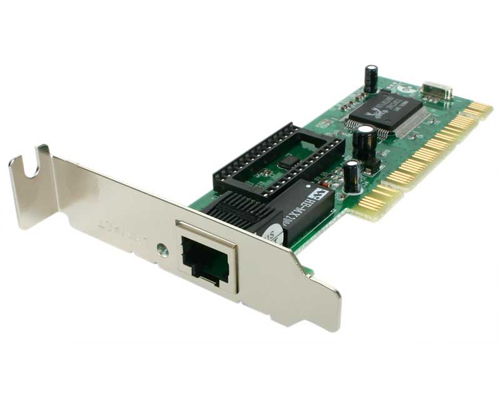

ST100SLP

Low Profile 10/100 PCI Ethernet 카드
최대 데이터 전송속도 200Mbps
Windows, Linux, Mac OS, Novell 호환

Overview
When you need a reliable, cost-effective Ethernet network connection in a low profile PCI form factor, choose the ST100SLP. With full duplex support for data transfer rates up to 200 Mbits/sec., this card is supported by a wide variety of operating systems and integrates seamlessly into your network environment.
  • Easy Plug and Play installation and support for all popular OSes: Windows, Linux, Mac OS, and Novell
  • Full and half duplex support, plus auto-negotiation of 10 and 100 Mbits/sec. connections provides easy connectivity in any Ethernet environment
This product is backed by StarTech.com's Lifetime warranty.





Features

•  Auto-setups IRQ and I/O address.
•  Built-in FIFO buffers to eliminate external memory.
•  Complies with industry standards: IEEE 802.3 CSMA/CD, 100BaseTX and 10BaseT standard.
•  Designed to fit any low profile PCI slot
•  One STP connector for 100Mbps or 10Mbps network speed.
•  Provides diagnostic software and two LEDs to indicate network link/activity and 10/100Mbps selection.
•  Supports 32-bit PCI Bus Master for high performance and low processor utilization.
•  Supports Auto-negotiation function.
•  Supports early interrupt on transmit to increase performance.
•  Supports enhanced smart remote Boot ROM (optional) (BOOTPROM100S)
•  Supports ODI driver for NetWare 3.x/4.x, NDIS driver for LAN Manager, Windows 95, Windows 98, Windows NT, Packet Driver for TCP/IP software & MAC OS X 10.3.


Technical Specifications

Warranty Lifetime warranty
Bus Type PCI / PCI-X (5 / 3.3V)
Connector Types 1 - RJ45 Female
Full Duplex Support Yes
Product Height 1.26 in [32 mm]
LED Indicators 1 - 10/100Mbps selection
LED Indicators 1 - Network link/activity
Product Length 4.72 in [120 mm]
Maximum Data Transfer Rate [2000000 Kbits/Sec]
Number of Ports 1
Operating Temperature 0 ~ 55
Carton Quantity 40
Shipping (Package) Weight 0.27 lb [0.12 kg]
Product Weight 1.98 oz [56 g]
Connectors (1) RJ-45
Standards IEEE 802.3/802.3u
Bus Type PCI
IRQ Assigned by system
I/O Address Assigned by system
Drivers ODI driver for NetWare 3.x/4.x; NDIS driver for LAN Manager, Windows 95/98/ME/NT 4.0/XP/Vista; Packet Driver for TCP/IP software and MAC OS X 10.3
Temperature 0 to 55 degrees C
Humidity 10 to 90% non-condensing
Chipset Realtek RTL8139D
