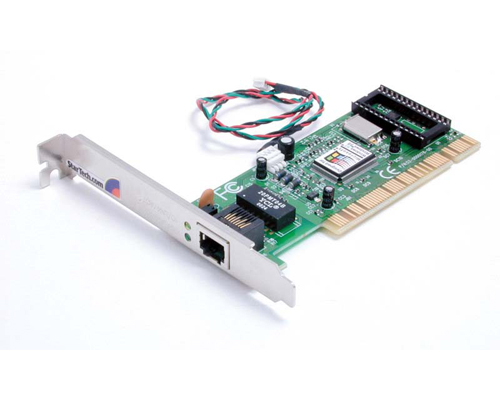

ST100SW

ACPI/Wake 포트를 탑재한 10/100 PCI Ethernet 카드
최대 데이터 전송속도 10Mbps또는 20Mbps, 100Mbps 또는 200Mbps
Windows, UNIX, Linux, Novell Netware 호환
IEEE 802.3 CSMA/CD, 100BaseTX, 10BaseT standard

Overview
The StarTech.com 10/100 Mbps PCI Ethernet Adapter is a high-speed, reliable network card for use in PC workstations, and workgroup servers. This model includes ACPI and Wake-on-LAN support, allowing the PC to be remotely turned on and managed over the network using a remote administration program. The card is fully PCI plug and play compliant, and has driver support for all versions of Windows, many versions of UNIX, Linux, and Novell Netware. Full Duplex support allows the card to send and receive simultaneously, allowing data transfer rates of up to 200Mbps if connected to a Fast Ethernet Switch.




Features

•  Auto-setups IRQ and I/O address.
•  Built-in FIFO buffers to eliminate external memory.
•  Complies with industry standards: IEEE 802.3 CSMA/CD, 100BaseTX and 10BaseT standard.
•  Full duplex design to double the performance to 20Mbps/200Mbps.
•  Includes Wake On LAN (WOL) feature that allows users to configure network adapters that are capable of monitoring network packets, even when the computer is turned off.
•  One STP connector for 100Mbps or 10Mbps network speed.
•  Provides diagnostic software and two LEDs to indicate network link/activity and 10/100Mbps selection.
•  Supports 32-bit PCI Bus Master for high performance and low processor utilization.
•  Supports Auto-negotiation function.
•  Supports early interrupt on transmit to increase performance.
•  Supports enhanced smart remote Boot ROM (optional) (BOOTPROM100S)
•  Supports ODI driver for NetWare 3.x/4.x NDIS driver for LAN Manager, Windows 95, Windows 98, Windows NT Packet Driver for TCP/IP software.


Technical Specifications

Warranty Lifetime warranty
Bus Type PCI (5 Volt)
Connector Types 1 - RJ45 Female
Full Duplex Support Yes
LED Indicators 1 - 10/100Mbps selection
LED Indicators 1 - Network link/activity
Maximum Data Transfer Rate [200 Mbits/Sec]
Number of Ports 1
Operating Temperature 0 ~ 55
Carton Quantity 40
Industry Standards IEEE 802.11b
Industry Standards IEEE 802.11u
Shipping (Package) Weight 0.33 lb [0.15 kg]
Connectors (1) RJ-45
Standards IEEE 802.3/802.3u
Data Transmission Rate 10Mbps or 20Mbps, 100Mbps or 200Mbps
Bus Type PCI
IRQ Assigned by system
I/O Address Assigned by system
Drivers ODI driver for NetWare 3.x/4.x, NDIS driver for LAN Manager, Windows 95, Windows 98, Windows NT, Packet Driver for TCP/IP software
Temperature 0 to 55 degrees C
Humidity 10 to 90% non-condensing
Certification FCC Class B, CE Mark
Dimensions 120 x 63 mm
Weight 60 g
Chipset Realtek RTL8139D
