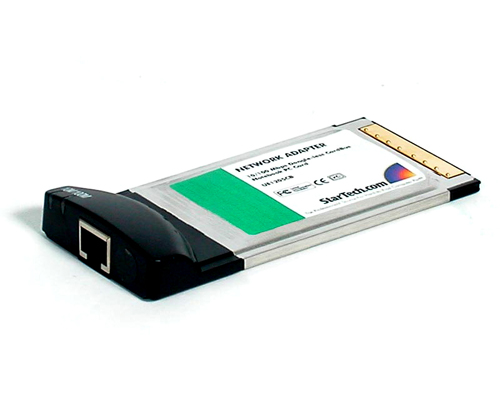

 UE1205CB
노트북용 10Dongle-less 10/100 Mbits/sec CardBus Ethernet 카드
최대 데이터 전송속도 100 Mbits/sec
Industry Standards IEEE 802.3
최대 동작 거리 100 미터
When you need a reliable, cost-effective Ethernet network connection for your notebook, choose the UE1205CB. With full duplex support for data transfer rates up to 200 Mbits/sec., this card is supported by a wide variety of operating systems and integrates seamlessly into your network environment.
- Easy Plug and Play installation and support for all popular OSes: Windows, Linux, and Novell
- Full and half duplex support, plus auto-negotiation of 10 and 100 Mbits/sec. connections provides easy connectivity in any Ethernet environment
This product is backed by StarTech.com's Lifetime warranty.
Features
| • |
Automatically negotiates 10 or 100 Mbps connection rate depending on the speed of the network |
| • |
Complies with the 32-bit PCMCIA CardBus PC Card standard |
| • |
Includes drivers for Windows 95, 98, NT3.51, NT4.0, 2000, XP, Novell 3.x and 4.x clients, and Packet Driver |
| • |
LEDs indicate link speed and activity |
| • |
Supports 10 or 100 Mbps network speeds in full or half duplex |
| • |
Ultra-low power consumption for longer notebook battery life |
Technical Specifications
| Warranty |
Lifetime warranty | |
| Bus Type |
CardBus |
| Connector Types |
1 - RJ45 Female |
| LED Indicators |
1 - Link Speed |
| LED Indicators |
1 - Activity |
| Maximum Data Transfer Rate |
100 Mbits/sec |
| Number of Ports |
1 |
| Operating Temperature |
0 ~ 50 |
| Carton Quantity |
40 |
| Industry Standards |
IEEE 802.3 |
| Industry Standards |
IEEE 802.3u |
| Shipping (Package) Weight |
0.42 lb [0.19 kg] |
| Standards |
IEEE 802.3 & 802.3u, 32-bit PC Card |
| Ports |
One integrated shielded RJ-45 port |
| LEDs |
10/100 Mbps link, Activity |
| Operating Temperature |
0-50 degrees C |
| Humidity |
10-90% non-condensing |
| Max. operating distance |
100 m (328 ft.) hub to node |
| Chipset |
Realtek RTL8139/810X | |
|
