하나의 USB포트를 사용하여 10/100 Mbits/sec Ethernet을 구현하는 장비
USB 1.1 또는 2.0 port 사용
최대 데이터 전송속도 480 Mbits/sec
Windows, Linux 호환

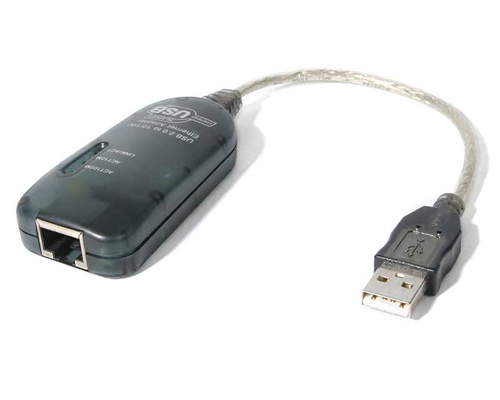

When you need a reliable, high speed mobile network connection, choose the USB1100S. With full duplex support for data transfer rates up to 200 Mbits/sec., this USB network adapter makes the most of the high-speed USB 2.0 ports on your desktop or notebook computer.
  • No need to open up case or have an open CardBus slot: works in any USB 1.1 or 2.0 port
  • Full and half duplex support, plus auto-negotiation of 10 and 100 Mbits/sec. connections provides easy connectivity in any Ethernet environment
  • Easy Plug and Play setup in Windows
This product is backed by's two year warranty.

The Advantage
•  Connects at a full 100Mbits/sec via USB 2.0, up to 8 times faster than a USB 1.1 adapter
•  Create a 10Base-T/100Base-TX Ethernet network using's USB 2.0 Adapter
•  Easy installation and setup - Plug the adapter to a USB port and connect an RJ45 network cable
•  Eliminates the need for NIC card installation or expensive PCMCIA cards
•'s USB2100S offers the most convenient way to attach a laptop or a desktop computer to an Ethernet network


•  Allows users to share peripherals, transfer files and share a connection to the Internet
•  Backward compatible with USB 1.1
•  Built-in LED indicators shows connection speed, link, and activity for easy network diagnostics
•  Compact size for greater flexibility
•  Plug-and-Play Compatible with Windows
•  Supports Full-Duplex Ethernet connections
•  The Compact USB 2.0 Network Adapter is bus-powered, drawing power from the host PC so it requires no external power cord
•  USB 2.0 compliant with data transfer rate of up to 480 Mbits/sec
•  Works with all network-enabled applications

Technical Specifications

Warranty 2 Year warranty
Color Gray
Connector Types 1 - RJ45 Female
Connector Types 1 - USB B Female
Product Height 0.75 in [19.05 mm]
LED Indicators 1 - 10 Mbps
LED Indicators 1 - 100 Mbps
LED Indicators 1 - Full Duplex
Product Length 2.75 in [69.85 mm]
Maximum Data Transfer Rate [200 Mbits/Sec]
Carton Quantity 60
Shipping (Package) Weight 1.99 lb [0.9 kg]
Product Width 1.45 in [36.8 mm]
Standards IEEE 802.3, IEEE 802.3u, USB 1.1, and 2.0
Data Transfer Rates
USB 1.1 Up to 12 Mbits/sec
USB 2.0 Up to 480 Mbits/sec
Ethernet (Half Duplex) 10/100 Mbits/sec
Ethernet (Full Duplex) 20/200 Mbits/sec
System Requirements Compatible with current Windows and Linux versions with USB Device Support and Drivers
Dimension 1.45 x 2.75 x 0.75 Inches
