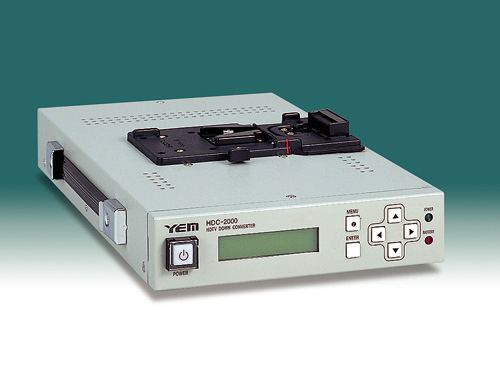

HDC-2000

HD Portable Down Converter
HD급 아날로그 신호(Y/Pb/Pr)를 받아 SD-SDI나 Composite 신호로 변환하는 장비
휴대용
입력 : Y/Pb/Pr x1
출력 : SD-SDI x1, Composite x1
3개의 화면 크기 설정

HDC-2000

HDTV DOWN CONVERTER

   <- Download the catalog(PDF 750kB)

                Features
                * Converts HD analog signals (Y/Pb/Pr) to SD serial digital signals (4:2:2) and analog composite signals
                * Responds to 3 input signal formats such as 1080/23.976P(sF), 1080/29.97P(sF), 1080/59.94i
                * Output signal format: 525/59.94i(NTSC)
                * 2:3 pull-down processing at P(sF) input



                Spec

INPUT HD アナログ Y/Pb/Pr    1.0/0.7/0.7Vp-p  75 ohm
INPUT FORMAT (1) 1080/23.976PsF
(2) 1080/29.97 PsF
(3) 1080/59.94 i
OUTPUT SD-SDI 4:2:2 Conforming to SMPTE259M, BNC 1 Output
Composite Video 1.0Vp-p 75 ohm, BNC 1 Output
OUTPUT FORMATS 525/59.94i
VOLTAGE DC 12V battery pack (Sony XLR 4P)
DIMENSIONS, WEIGHT 184(W) x 326(D) x 44(H) mm (1U),  Approx. 1.6kg



                * Specifications subject to change without prior notice for improvement.
